BGAN M2M

hiSky´s Smartellite™ Dynamic / Ka-band®‍

SatelliteTerminal for On-the-Move IoT Connectivity

hiSky‘s Smartellite™ Dynamic Ka terminal is part of a unique line of satellite terminals that features innovative technology, enabling portable itinerant operations or fully mobile operations, for various applications in the IoT field.  The terminals are FCC & CE certified, lightweight, easy to mount, install, pair and operate.
The SmartelliteTM Dynamic Ka terminal is a low-cost, compact satellite device with unique state-of-the-art design
& technology, designed to be used by your driving workforce.

The terminal comprises an electronically steerable phased array antenna and a built-in modem, providing
a mountable, single-unit solution, which independently & seamlessly directs communication through Ka-band frequencies over GEO satellites.

This exceptional ground terminal is a part of hiSky’s agile IoT network, enabling on-the-move satellite services according to our customer’s applicational needs.hiSky’s agile IoT network, provides an easy-to-use, cloud-based platform enabling data backhaul for actionable insights from anywhere on the planet.

The terminal offers hybrid connectivity introducing automatic Satellite & LTE switching capabilities.
It’s default mode is LTE connectivity, but as soon as the terminal leaves cellular range, it automatically transfers all communication to satellite, ensuring that users will always be connected and able to communicate, even in the most challenging environments.

This terminal, designed to meet the requirements of both LEO and GEO satellites, have the unique ability to switch between them for Low Data Rate (IoT & MSS services) and for High Data Rate (Broadband) applications, guaranteeing a future-proofed solution that will correlate with the market’s connectivity demands.

Features

Automatic satellite acquisition with electronically steered, phased array antennas eliminating the vehicle’s movement from effecting connectivity.
Optional -Hybrid connectivity Satellite & LTE.
Enables all vehicle and human connectivity over satellite through one device:

Vehicle telemetry: location &tracking | predictive maintenance geofencing and routing | CANBUS telematicsHuman communication from any smartphone: voice calls |chat | PTT | SOS alerts.

Agile IoT Network hiSky’s open architecture enables easy integration with any device or application provider that suits your business needs, and integrates with any existing network to complement your coverage in all rural areas worldwide.

Ver todos los detalles del producto »

Iridium EDGE

$366.17

• Iridium EDGE
• Caracteristicas

• Permita que sus clientes aprovechen las soluciones terrestres existentes de gestión de flotas, telemática, seguridad y otras aplicaciones de supervisión remota con la ayuda de Iridium Edge®, un dispositivo de comunicaciones satelitales listo para usar que amplía la conectividad más allá de los límites de un sistema celular para asegurar una cobertura de Internet de las Cosas (IoT) global al 100%.

  La rapidez en los plazos de lanzamiento es uno de los componentes críticos del entorno altamente competitivo de las comunicaciones. Iridium Edge® es un dispositivo satelital complementario que proporciona capacidad de modo dual y reduce los costos, las incertidumbres y las complicaciones del desarrollo, fabricación y certificación de terminales satelitales.

• Principales Prestaciones


  • Dispositivo con hardware compatible para una Integración Sencilla de Bajo Riesgo
  • Dispositivo de bajo costo para una Adopción Asequible
  • Complemento satelital para una Cobertura Auténticamente Global
  • Listo para instalar para Acortar los Plazos de Lanzamiento
  • Suministro eléctrico robusto para Instalaciones Industriales
  • Certificado en Mercados Geográficos Clave
  • Campo visual de 180° para Ubicaciones Complicadas Parcialmente Bloqueadas
  • Módem Iridium Short Burst Data® (SBD®) para Aprovechar las Ventajas de la Red Iridium

Ver todos los detalles del producto »

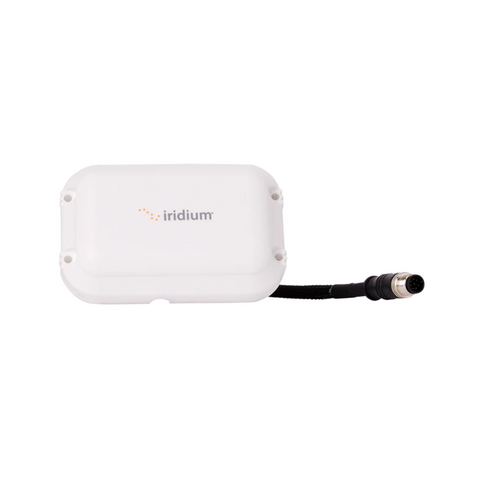

Iridium Edge®

Allow your customers to leverage existing terrestrial solutions for fleet management, telematics, security, and other remote monitoring applications with the help of Iridium Edge^®, a ready-to-use satellite communications device that extends connectivity beyond the bounds of a cellular system to ensure 100% global Internet of Things (IoT) coverage.Rapid time-to-market is one of the critical components in the highly competitive communications environment. Iridium Edge^® is a complementary satellite device that provides dual-mode capability and reduces the costs, uncertainties, and complexities of satellite terminal development, manufacturing, and certification.

Ver todos los detalles del producto »

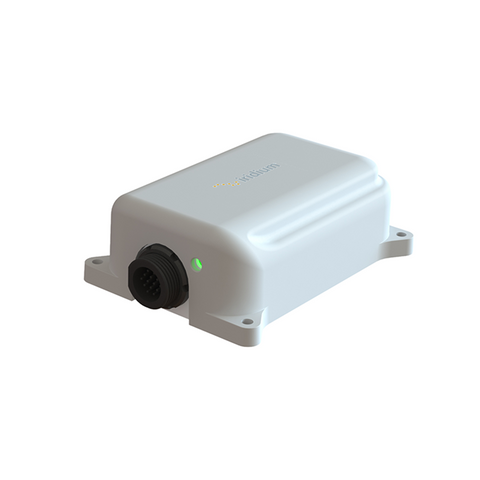

Iridium Edge® Pro

Customize. Deploy. Iridium Edge^® Pro offers a streamlined way to innovate, customize and deploy smarter solutions for remote asset management. Create customizable end-to-end monitoring solutions for remote vessels, vehicles and equipment using best-in-class Iridium two-way networking and truly global coverage.

Ver todos los detalles del producto »

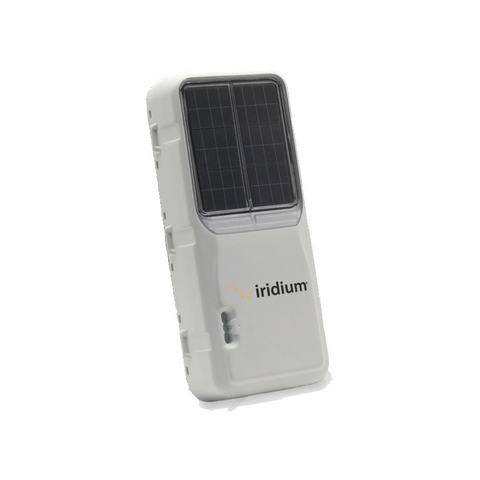

Iridium Edge® Solar

Smart, Secure and Solar Powered By harvesting the sun's energy, Iridium Edge^® Solar enables long-term deployment of tracking, monitoring and asset management solutions. A self-contained, programmable device powered by Short Burst Data^® (SBD^®) solar energy, the Iridium Edge^® Solar offers real-time GPS tracking, local wireless sensor and Bluetooth communication capabilities.

Ver todos los detalles del producto »

MYRIOTA FLEXSENSE

Myriota FlexSense has a very robust and rugged build, with its IP67-rated and UV-resistant enclosure, allowing for reliable use and excellent performance for remote deployments under extreme conditions globally.

Direct-to-orbit communication with the Myriota constellation eliminates the need to be within range of a ground communication tower (radio or cellular), central gateway, or other terrestrial infrastructure for data transmission. Myriota FlexSense offers a multi-year lifespan from 4 x AA lithium batteries (e.g. Energizer L91) with secure access to the battery compartment for field maintenance.

Communications
Myriota is the secure, private, low-power D2O satellite bi-directional connectivity link.

Dimensions  (H x W x D)
•  198 mm (Includes antenna and cable relief) x 95 mm x 47 mm
•  7,8 inches x 3,7 inches x 1,9 inches

Satellite Transmission Frequency
Myriota  Service 2 - 399.9 MHz - 400.05 MHz

Satellite reception band
Myriota  Service 2 - 400.15 MHz - 401 MHz

Field Update
•  Bluetooth Low Energy (BLE)
• USB-C

Temperature
•  Operational | -30°C a +70°C / -22°F a 158°F
•  Storage | -30°C a +70°C / -22°F a 158°F

Localization services
Global Navigation Satellite System (GNSS) for geolocation and tracking

Applications for Programming
Includes access to a library of one-click configurable apps suited for specific use cases and sensor types. Myriota’s Design Services team, or your own in-house development team, can develop custom apps using the Myriota Software Development Kit (SDK) and Device API.

Cable / Connection
It comes in its standard format with a 3 m connection cable, for power and sensors.

Expansion Header
Internal expansion interface to support other I/O options Interfaces

Environmental Certifications (pending)
• IP-67
• RoHS / REACH

Ver todos los detalles del producto »

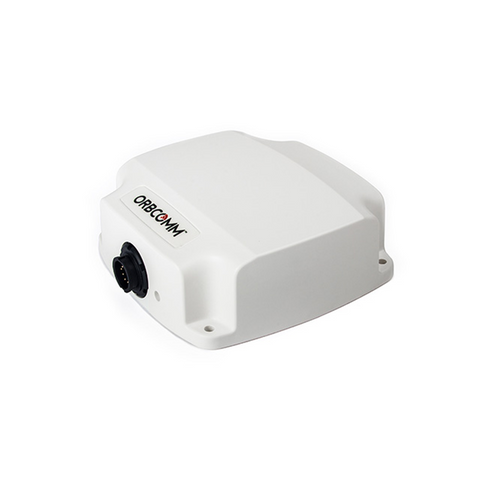

Orbcomm ST 6100

The latest generation in satellite terminals more powerful, more versatile, greater coverage. Track, monitor and control assets in some of the most isolated regions in the world.

Ver todos los detalles del producto »

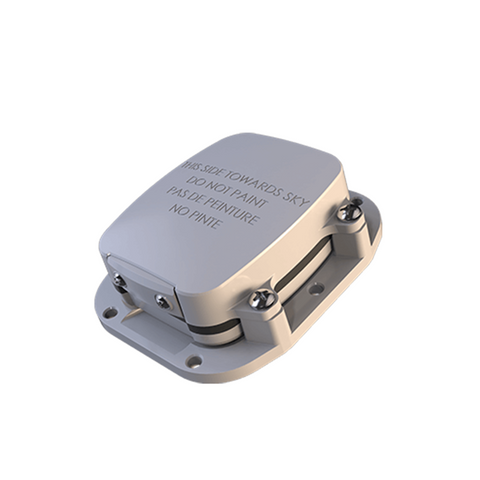

SmartOne C

Designed for remote management of fixed or mobile assets, the SmartOne C is a practical solution and features a variety of functions, including:
✦ Scheduling up to 12 different data transmission intervals.
✦ 24-hour or interval operation.
✦ Transmission scheduling alternating.
✦ Low battery message.

Ver todos los detalles del producto »

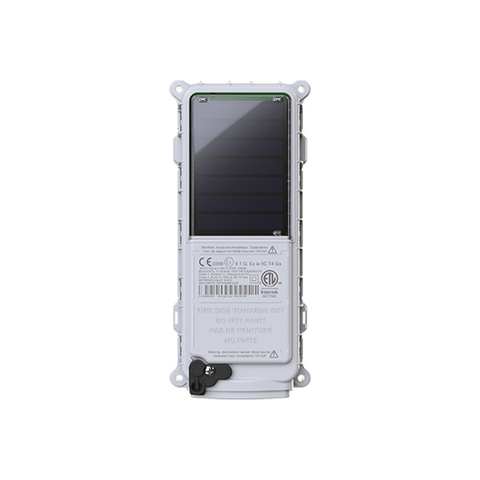

SmartOne Solar

SmartOne Solar is a low-maintenance IoT device that provides remote monitoring and tracking capabilities.
✦ The Device can be applied for Transport solutions: in the monitoring and tracking of assets.
✦ Gas and Oil: assisting in the deployment of high value assets in field research and exploration.
✦ Construction: determining when and where your equipment is being used.
✦ Security: monitoring valuable assets such as train cars, propane tanks and agricultural machinery.
✦ Maritime: in the monitoring of assets such as boats at the dock and off-shore.
✦ In addition to other applications such as industry, mining, forestry, public service and fisheries.

Ver todos los detalles del producto »

Terminal Satelital M2M BGAN Hughes 9502

$1,348.85

• Hughes 9502 M2M
• Características
• Videos

• Hughes 9502 M2M BGAN Satellite Terminal - Hughes 9502 Antenna Panel (ODU)

  • Hughes 9502 Controller (IDU)
  • 10 Meter RF Cable with TNC Connector for IDU, & N-Type for ODU

  (cable length can be extended)

• Características

  • Tamaño: 15 x 20 x 4.5 cm
  • Peso: 1.5 Kg
  • Sin carga de conexión con BGAN M2M (la carga normal en BGAN es 1OO K)
  • Mínimo CDR (Charge Data Record) 1 Kbyte (la carga normal en BGAN es 10 Kbyte)
  • Actualizaciones de software sin carga
  • Control remoto vía SMS, incluyendo configuración, depuración, y acceso al interfaz web
  • Opciones integradas para seguridad
  • Instalación sencilla. No es necesario un PC
  • Se puede instalar el ODU en un poste
  • Receptor de GPS integrado

  ¿Qué hay en la caja?

  • Panel antena Hughes 9502 (ODU)
  • Controlador Hughes 9502 (IDU)
  • 10 m de cable RF (Tipo N macho ambos extremos)
  • Conector Tipo TNC a tipo N para conexión con IDU



  Más información:    Descargar Brochure

• Videos

Ver todos los detalles del producto »

Terminal Satelital M2M BGAN Hughes 9502 (de una sola pieza)

$1,868.25

• Hughes 9502 M2M
• Características
• Videos

• El terminal más avanzado de máquina a máquina M2M , BGAN en el mundo. El Hughes 9502 terminal de una sola pieza tiene la calificación más alta de la industria (IP66), excepcionalmente bajo consumo de energía, y una antena integrada ideal para los sitios con aplicaciones M2M como Smart Grid, la vigilancia ambiental, el control de la tubería, automatización de sitios monitoreo y otros sistemas SCADA automatizados.
  El 9502 es un dispositivo remoto rentable. Lo que separa el m2m de bgan hughes 9502 aparte de otras soluciones de comunicación, es que el 9502 realiza supervisión en vivo en tiempo real en conexión IP a internet, y cuando surgen problemas críticos, la 9502 proporciona velocidades de 464 kbps para que las soluciones pueden ser implementadas rápidamente.

• Características

  • Sin conexió mínima de carga
  • Consumo de energía ultra bajo
  • Sin usar: 1 W
  • Transmisión: 20 W
  • Recepción: 3 W
  • Actualizaciones de software sin carga
  • Control remoto vía SMS, incluyendo configuración, depuración, y acceso al interfaz web
  • Instalación sencilla. No es necesario un PC
  • La terminal Hughes M2M posee certificación BGAN M2M
  • Receptor de GPS integrado

  ¿Qué hay en la caja?

  • Terminal Hughes M2M
  • Barra de seguridad para candado
  • Tornillos para montaje y arandelas



  Más información:    Descargar Brochure

• Videos

Ver todos los detalles del producto »
